利用OPENCV和CUDA实现的基于Gabor滤波的曲线检测算法

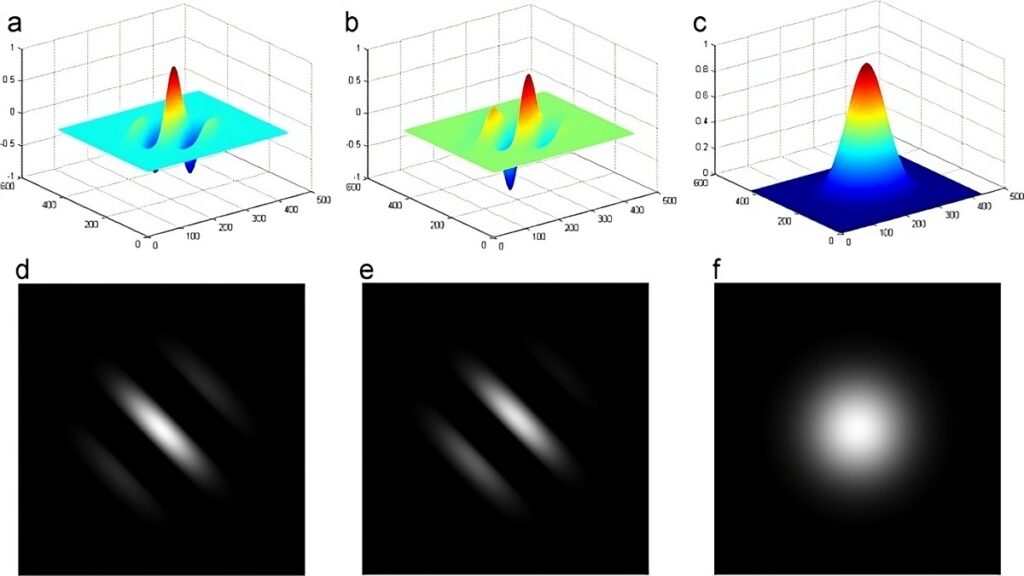

opencv中有现成的边缘检测和线检测算法,也有对应的gpu实现。但没有曲线检测的算法。下面就实现一个基于Gabor滤波的曲线检测算法,并使用gpu来提高运算速度。算法参考了GitHub上的代码,通过控制Gabor滤波的参数来控制检测的线宽等特征,并使用了FFT来代替卷积从而提升速度。

1.算法来源

算法参考了https://github.com/Po-Ting-lin/HairRemoval里面的代码。

2.算法流程

3.代码

头文件 DetectLineCUDA.h 的主要部分。关键是构造函数,输入了Gabor滤波的参数,可以用来调整检测曲线的宽带,长度等。

class DetectLineCUDA
{
public:
    DetectLineCUDA(int cols, int rows, std::vector<int> _angles,int MinArea = 20,float Alpha = 1.15f,float Beta = 0.55f,float HairWidth = 12.0f);
	void detect(cv::cuda::GpuMat& src, cv::cuda::GpuMat& mask);
	~DetectLineCUDA();

private:
      .............
};

#endif // DETECTLINECUDA_H

类文件 DetectLineCUDA.cpp

DetectLineCUDA::DetectLineCUDA(int cols, int rows, std::vector<int> _angles, int MinArea, float Alpha, float Beta, float HairWidth)
{
	Width = cols;
	Height = rows;

    NumberOfFilter = 8;
    this->MinArea = MinArea;
    this->Alpha = Alpha;
    this->Beta = Beta;
    this->HairWidth = HairWidth;

	SigmaX = 8.0f * (sqrt(2.0 * log(2) / CV_PI)) * HairWidth / Alpha / Beta / CV_PI;
	SigmaY = 0.8f * SigmaX;
	KernelRadius = ceil(3.0f * SigmaX);  // sigmaX > sigamY
	KernelW = 2 * KernelRadius + 1;
	KernelH = 2 * KernelRadius + 1;
	KernelX = KernelRadius;
	KernelY = KernelRadius;
	FFTH = snapTransformSize(Height + KernelH - 1);
	FFTW = snapTransformSize(Width + KernelW - 1);

	cufftPlan2d(&_fftPlanFwd, FFTH, FFTW, CUFFT_R2C);
	cufftPlan2d(&_fftPlanInv, FFTH, FFTW, CUFFT_C2R);

    this->angles.insert(this->angles.end(), _angles.begin(), _angles.end());
}

int DetectLineCUDA::snapTransformSize(int dataSize) {
	........
}
........
void DetectLineCUDA::detect(cv::cuda::GpuMat& src, cv::cuda::GpuMat& mask) {
	float* d_PaddedData;
	float* d_Kernel;
	float* d_PaddedKernel;
	float* d_DepthResult;
        ........

	//// init data
	float* h_kernels = _initGaborFilterCube();
    cudaMemcpy(d_Kernel, h_kernels, KernelH * KernelW * NumberOfFilter * sizeof(float), cudaMemcpyHostToDevice);

	cuda::GpuMat src_f;
	if (src.channels() == 3) {
		cuda::GpuMat src_gray;
		src.convertTo(src_gray, CV_32FC3);
		cuda::cvtColor(src_gray, src_f,cv::COLOR_BGR2GRAY);
	}
	else {
		src.convertTo(src_f, CV_32F);
	}

	cuda::GpuMat d_src_c_ptr_mat(src.rows, src.cols, CV_32FC1, d_src_c_ptr);

	cuda::GpuMat pand_mat(FFTH, FFTW, CV_32FC1, d_PaddedData);
	cuda::copyMakeBorder(src_f, d_src_c_ptr_mat, 0, FFTH - src.rows, 0, FFTW - src.cols, BORDER_WRAP);
	d_src_c_ptr_mat.copyTo(pand_mat);

	// FFT data
	cufftExecR2C(_fftPlanFwd, (cufftReal*)d_PaddedData, d_DataSpectrum);
	cudaDeviceSynchronize();

    for (int i = 0; i < angles.size(); i++) {
        int kernel_offset = angles[i] * KernelH * KernelW;
		int data_offset = i * FFTH * FFTW;

		_padKernel(d_PaddedKernel, d_Kernel + kernel_offset);

		cv::cuda::GpuMat raw_dst_mat(FFTH, FFTW, CV_32FC1, d_PaddedKernel);
		cv::Mat cpumat;
		raw_dst_mat.download(cpumat);

		// FFT kernel
        cufftExecR2C(_fftPlanFwd, (cufftReal*)d_PaddedKernel, (cufftComplex*)d_KernelSpectrum);
        cudaDeviceSynchronize();

		//// mul
		_modulateAndNormalize(d_TempSpectrum, d_DataSpectrum, d_KernelSpectrum, 1);
        cufftExecC2R(_fftPlanInv, (cufftComplex*)d_TempSpectrum, (cufftReal*)(&d_DepthResult[data_offset]));
        cudaDeviceSynchronize();


		cv::cuda::GpuMat d_DepthResult_mat(FFTH, FFTW, CV_32FC1, d_DepthResult + data_offset);
		d_DepthResult_mat.download(cpumat);
	}

	_cubeReduction(d_DepthResult, d_Result);

	cuda::GpuMat d_Result_mat(Height , Width,CV_8UC1, d_Result);
	d_Result_mat.copyTo(mask);
.........
}

float* DetectLineCUDA::_initGaborFilterCube() {
	float* output = new float[KernelW * KernelH * NumberOfFilter];
	float* output_ptr = output;
	for (int curNum = 0; curNum < NumberOfFilter; curNum++) {
		float theta = (float)CV_PI / NumberOfFilter * curNum;
		for (int y = -KernelRadius; y < KernelRadius + 1; y++) {
			for (int x = -KernelRadius; x < KernelRadius + 1; x++, output_ptr++) {
				float xx = x;
				float yy = y;
				float xp = xx * cos(theta) + yy * sin(theta);
				float yp = yy * cos(theta) - xx * sin(theta);
				*output_ptr = exp((float)(-CV_PI) * (xp * xp / SigmaX / SigmaX + yp * yp / SigmaY / SigmaY)) * cos((float)CV_2PI * Beta / HairWidth * xp + (float)CV_PI);
			}
		}
	}
	return output;
}

cuda 文件 DetectLinekernel.cu

里面的一些函数可以使用opencv里的函数代替,但感觉意义不大,就直接使用原来的了。

函数调用的方法

        Mat inputmat = imread("test.bmp",cv::IMREAD_GRAYSCALE);
        cv::bitwise_not(inputmat,inputmat);//算法找寻的是黑色的曲线,所以将原始图片取反
        cuda::GpuMat inputgpu;
        inputgpu.upload(inputmat);

        std::vector<int> angles;
        angles.push_back(ANGLE_0);
        angles.push_back(ANGLE_23);
        angles.push_back(ANGLE_45);
        angles.push_back(ANGLE_68);
        angles.push_back(ANGLE_90);
        angles.push_back(ANGLE_113);
        angles.push_back(ANGLE_135);
        angles.push_back(ANGLE_157);
        DetectLineCUDA dl(inputmat.cols, inputmat.rows,angles,20,1.95f,0.85f,8.0f);
        cv::cuda::GpuMat m_g = cuda::createContinuous(inputmat.size(), CV_8UC1);
        dl.detect(inputgpu, m_g);

        Mat m;
        m_g.download(m);
        imwrite("m.bmp", m);// m 就是分析出的曲线,后续可以再进行2值化,去掉一些干扰

算法效果
